Merge and Split Shared Vertices

What shared vertices are

On a smooth surface, the faces around a corner share one single vertex. On a hard edge they can’t: each face needs its own normal at that corner, so the mesh stacks several vertices in the exact same position, one per face. They are shared in the sense that they sit at the same place, and each one carries its own normal and its own color.

That detail matters for vertex painting, because a “physical vertex” you see in the viewport can actually be two, three or more vertices on top of each other, and each one can hold a different color.

Vertex Studio gives you both behaviours, and you switch between them in the View section (see View and Debug Options).

Tip

You can alternate between a hard and a smooth edge by using the Paint Normals brush, see the Paint Normals brush.

Merge Shared Vertices

The default mode: vertices stacked in the same position are painted together and drawn as a single square, so a corner reads as one vertex and gets one color (“one physical vertex, one color”).

Split Shared Vertices

Note

This mode requires Vertex Studio Pro ⭐.

The stacked vertices fan apart on screen around their real position, each square drawn in its own color with a thin line back to the point they belong to. Now you can paint each face’s corner with a different color, which is how you get a sharp color change across an edge instead of a gradient, the classic N64 and PS1 look.

The fan is only for picking, the vertices never move: as soon as you go back to Merge, the squares collapse back into one.

Tip

The Precision Paint Brush is the comfortable way to paint a fan, it locks onto the individual vertex under the cursor with no brush size involved. See Brushes and Painting Tools. If you want to paint all vertices on the fan at once, just use the brush, normally.

Tip

Selection tools can select individual vertices on the split fan.

Note

Split only has something to fan out where the mesh actually has hard edges. On a fully smooth model every corner is a single vertex, so both modes look the same. To create the hard edges, use the Paint Normals brush, see the Paint Normals brush.

Tip

Remember that any tool and action, including the merge and split toggle can be bound to a key, see Shortcuts.

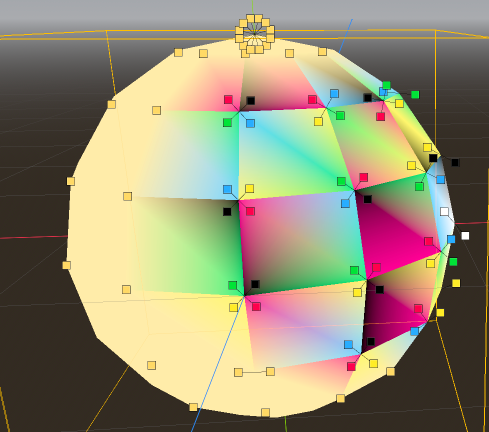

Example: Mixing hard and smooth faces with Paint Normals and Split Shared Vertices

1. With Paint Normals in Hard mode, brush the edges you want faceted (or use Fill All Hard for a fully faceted look).

2. Switch to Split Shared Vertices in View. The corners you made hard now fan apart.

3. Pick the Precision Paint Brush and paint each corner of the fan with its own color.

4. With Paint Normals in Smooth mode, brush the edges you want smoothed.

5. Go back to Merge Shared Vertices when you are done, so normal painting behaves as usual again.

Tip

The example scene is in tutorial repository, in the file /Advanced/SplitVertices/MultiColoredSphere.tscn.
